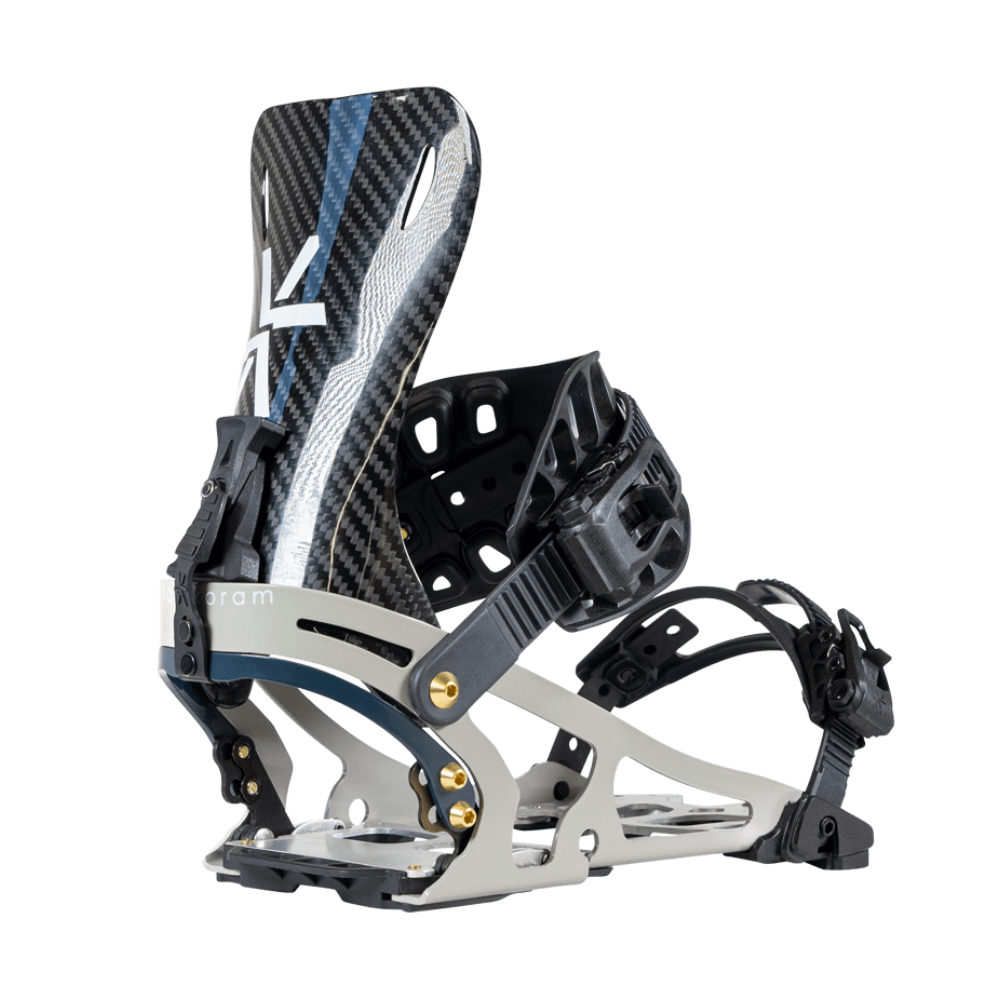

Karakoram X Carbon, bindings splitboard bindings, 45-degree angle

X Carbon

Large (US 11.5-13)
$1,079.95 USD
$1,079.95 USD
Skip to product information
Karakoram X Carbon, bindings splitboard bindings, 45-degree angle
  • Karakoram X Carbon, bindings splitboard bindings, 45-degree angle

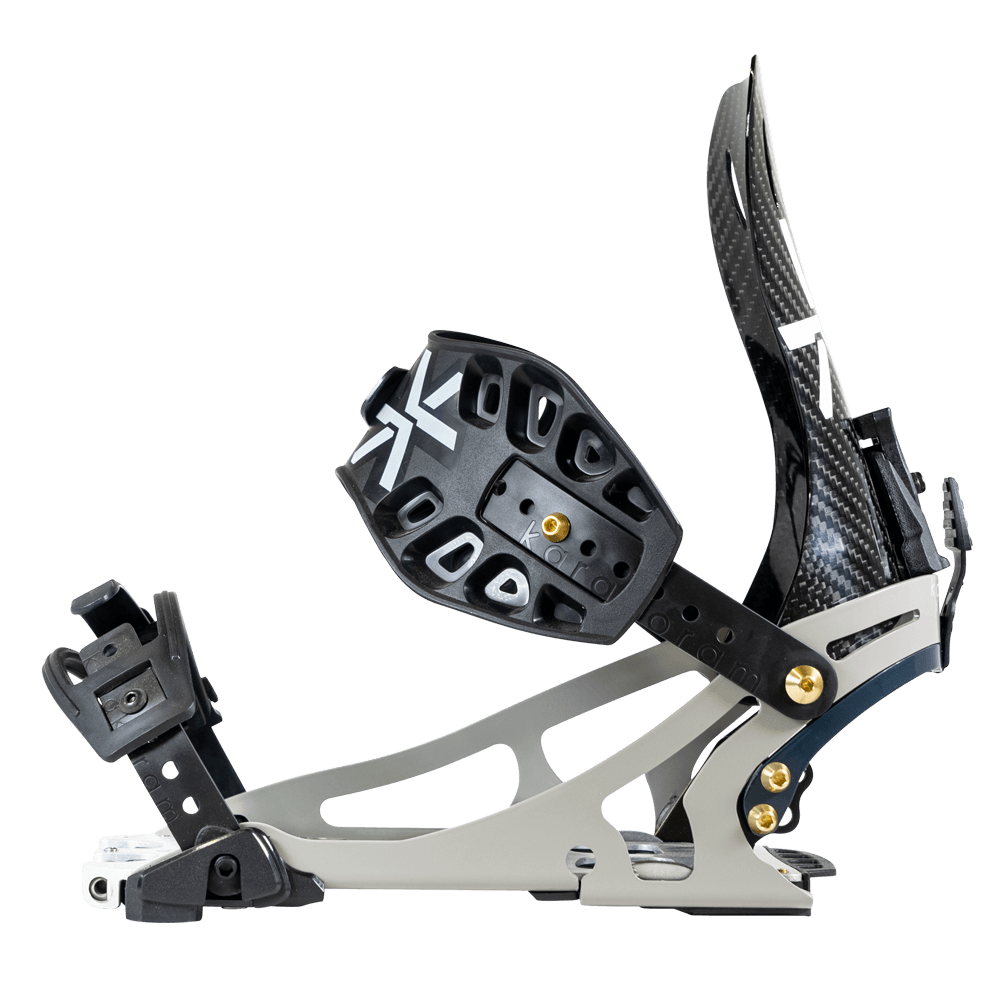

  • Karakoram X Carbon, bindings splitboard bindings, side angle
  • Karakoram Ultra Ranger + Quiver Connectors, bindings quiver bindings, view 5 of 6
X Carbon

OVERVIEW

Jeremy Jones’s binding of choice. The ultimate go-to binding for the most elite snowboarders in the world. Built from the PRIME-X and adding our prepreg carbon fiber highback, this is a precision engineered workhorse you can count on. Whether you ride spines in AK, couloirs in the Arctic Circle, or your favorite powder stash in your backyard, the Prime-X Carbon will keep you grinning from ear to ear.
$1,079.95 USD
$1,079.95 USD
Size
Black and blue ski or snowboard silhouettes with white logo patches

Includes: Bindings, Interface Kit (Ride Mode 3.0, Tour Mode, DualSpeed Riser w/ Heel-Lock). Add Quiver-Connectors to use your snowboard.
Snowboard binding spec chart showing weight, chassis, highback, and strap ratings

Patented and Patents Pending

Binding tech

Snowboard binding side view with red arrows showing baseplate flex

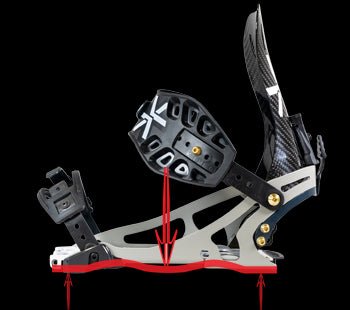

ACTIVE JOINING

Pre-loaded binding to board connections give instant response. The most responsive connection for snowboards and splitboards.
Horizontal bar chart with red vertical bars fading to white edges
Black carbon fiber snowboard binding highback with white X logo

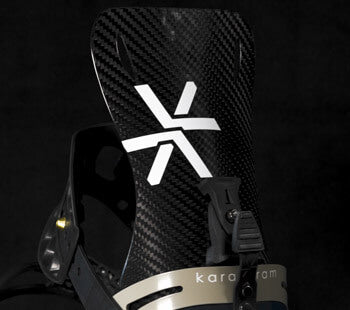

CARBON HIGHBACK

FEATHERWEIGHT AND POWERFUL
Powerful heelside support for ripping turns. Flex 10/10
Snowboard boot binding highlighter with adjustable angle mount diagram overlay

DUAL RIDE-STRIDE

RIDE. TURN. STRIDE.
-1/4 turn from ride mode to walk mode
-Ride Mode: 10° to 22°, in 2° increments
-Surf Mode: 0° or 11°
-Walk Mode: -8° allows for longer stride
Close-up of snowboard binding highback with gold hardware and carbon straps

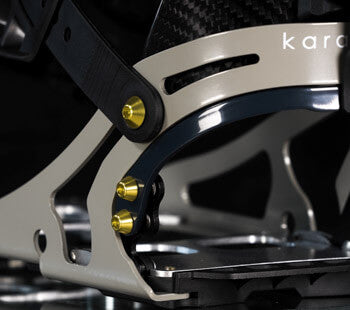

Ti AND AL HARDWARE

EVERY GRAM COUNTS.
No expense spared. All screws have been upgraded to custom anodized 7075-T6 aluminum or Grade 5 Titanium. All pins are hollow core Grade 5 Titanium.
Black snowboard binding highback with white X logo, close-up

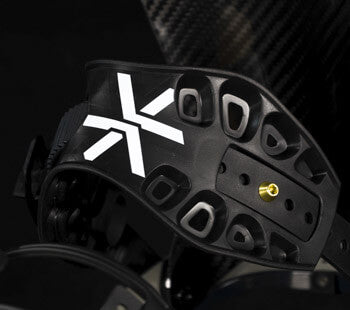

AIRPOD STRAPS

NO PRESSURE POINTS.
Independent Pressure Pods articulate to boot eliminating pressure points and pinch points. Made from P-Lite TPE, 30% lighter than standard TPU
Close-up of gray snowboard binding straps with metal ratchet buckles

CARBON BUCKLES

DURABLE AND LIGHT.
Made from recycled carbon fiber tow, these buckles are not just strong and light they use carbon fiber that is destine for landfills.
Close-up of drum pedal footboard with black plate and gold hardware

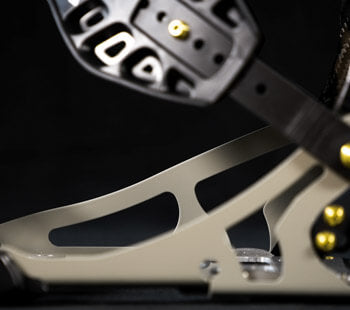

ASYMMETRIC HEELCUP

TOUR SUPPORT. RIDING FREEDOM.
The high outside sidewall provides the best power transfer to your edges while touring. The dropped inside sidewall allows you the freedom of movement to tuck your knee in a turn or tweak a grab.
Close-up of aluminum cutout footpegs on carbon fiber motorcycle frame

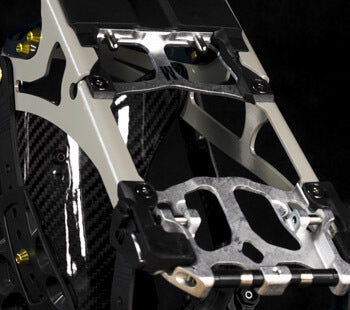

7075-T6 OPEN CHASSIS

NATURAL BOARD FLEX.
CNC’d completely from 7000 series space grade aluminum, the open chassis allows your bindings to twist naturally with your board. Say no to dead spots under your feet.
Black plastic snowboard binding discs highlighted on board surface

DROP ON CHANGE OVERS

RIDE MODE 3.0

Comes standard
Black touring binding inserts mounted on white ski tips, top view

RIDE ALL YOUR SNOWBOARDS

QUIVER CONNECTORS

Add as an accessory

RIDE MODE 3.0 TECH

Black splitboard with white center stripe, blue and white graphic designs
Blue-toned photo of ski touring bindings on snowy splitboard skis

DROP ON CHANGE-OVERS

ACTIVE JOINING.

Active joining allows for a loose fit then closing the lever locks your binding to board, removing all play from the system. NO SLOP.
Black bike pedal cleats mounted on carbon fiber surface, close-up

3D COMPOSITE DESIGN

LIGHTER. STRONGER.

4X Stronger, material is only where it needs to be to maximize the strength to weight ratio.
Close-up of ski boot binding mounts on wooden skis, blue tint

3D COMPOSITE DESIGN

LIGHTER. STRONGER.

4X Stronger, material is only where it needs to be to maximize the strength to weight ratio.
Boot tread footprint pressed into snow, blue-tinted close-up

3D COMPOSITE DESIGN

LIGHTER. STRONGER.

4X Stronger, material is only where it needs to be to maximize the strength to weight ratio.

TOUR MODE TECH

Black ski tips with white stripe and blue abstract graphic accents
Black ski touring binding mounted on white ski, close-up angle

TOUR MODE

TIGHTEST AND SMOOTHEST TOUR PIVOT.
  • Independent sleeves rotate freely on a fixed through axle for the stiffest and smoothest touring pivot.
  • Offset cradle allows snow to clear during entry.
  • Quick release touring bracket allows for quickest and simplest transition
Black rear derailleur mechanism resting on light gray surface

DUAL SPEED RISERS

POLE BASKET FLIP.
  • Flip up with pole basket; simple and easy
  • Dual height climbing risers
Karakoram Flex-Lock, splitboard accessories, view 2 of 3

FLEX-LOCK

2X THE EDGE GRIP.

Tour faster using less energy. Use the boots you want to ride in. Ride like a snowboarder. Tour like a hard booter.  Add as an accessory.
Black snowboard binding with blue strap mounted on board, close-up

HEEL-LOCK

LOCK YOUR HEEL.
  • On-the-fly heel lock down
  • Release load equivalent to DIN 6
  • Heel-Lock folds out of way when not needed
